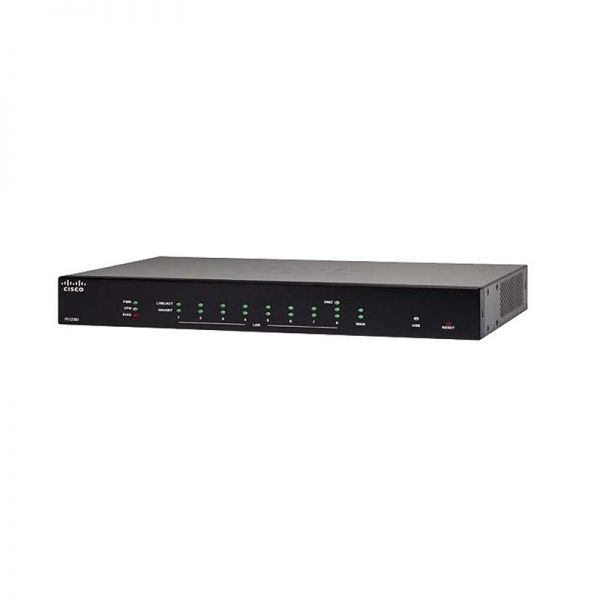

RV260-K9-IN Спецификация
RV260-K9-IN Specification |
|
|
Device Dimension |
L x W x H:279.4x170x38.5 mm |
|
Ethernet WAN |
1 RJ-45 SFP Gigabit combination port |
|
Ethernet LAN |
8 RJ-45 Gigabit Ethernet ports RV260P has 4 PoE ports with a 60W power budget |
|
Console port |
1 RJ-45 port |
|
Switch |
Power on/off |
|
Cabling type |
Category 5 or better |
|
LEDs |
Power, VPN, WAN, LAN |
|
Operating system |
Linux |
|
LAN |
|
|
VLANs |
16 |
|
Port security |
Yes, 802.1X |
|
IPv6 |
Dual stack, 6rd, 6in4 |
|
WAN
|
Dynamic Host Configuration Protocol (DHCP) client, static IP, Point-to-Point Protocol over Ethernet (PPPoE), PPTP, Layer 2 Tunneling Protocol (L2TP) |
|
WLAN |
3x3 802.11ac Wave 2 |
|
Security |
|
|
Firewall
|
SPI firewall |
|
Port forwarding and triggering |
|
|
Denial-of-Service prevention (DoS) |
|
|
Access control |
IP access control lists |
|
Secure management |
HTTPS, username/password complexity |
|
User privileges |
Two levels of access: Admin and guest |
|
Network |
|
|
Network protocols
|
• Dynamic Host Configuration Protocol (DHCP) server • Point-to-Point Protocol over Ethernet (PPPoE) • Point-to-Point Tunneling Protocol (PPTP) - Layer 2 Tunneling Protocol (L2TP) • DNS proxy • DHCP relay agent • Internet Group Management Protocol (IGMP) proxy and multicast forwarding • Rapid Spanning Tree Protocol (RSTP) • Dynamic DNS (DynDNS, No-IP, ChangeIP) • Network Address Translation (NAT), Port Address Translation (PAT) • One-to-one NAT • Port management • Port mirroring • Software-configurable DMZ to any LAN IP address - Session Initiation Protocol (SIP) Application Layer Gateways (ALG) |
|
Routing protocols
|
• Static routing, IGMP proxy • Dynamic routing • Routing Information Protocol (RIP) v1 and v2 • RIP for IPv6 (RIPng) - Inter-VLAN routing |
|
NAT protocol
|
Port Address Translation (PAT), Network Address Port Translation (NAPT) |
|
Port forwarding, One-to-one NAT, VPN NAT Traversal, Session Initiation Protocol (SIP), ALG, FTP ALG |
|
|
VPN |
|
|
Gateway-to-gateway IPsec VPN |
20 IPsec tunnels |
|
Client-to-gateway IPsec VPN |
20 IPsec tunnels |
|
IPsec VPN
|
Internet Key Exchange (IKE) v2, Generic Routing Encapsulation (GRE), hub and spoke supported |
|
PPTP VPN |
20 PPTP VPN tunnels |
|
OpenVPN |
Support for the OpenVPN server |
|
Encryption
|
Triple Data Encryption Standard (3DES), Advanced Encryption Standard (AES) with 128, 192, and 256-bit keys encryption |
|
VPN pass-through |
IPsec, PPTP, and L2TP pass-through |
|
Quality of Service (QoS) |
|
|
QoS
|
• 802.1p port-based priority on LAN port, application-based priority on WAN port • 4 queues • Differentiated Services Code Point (DSCP) support • Class of Service (CoS) • Bandwidth management for service prioritization |
|
Jumbo frame support
|
Supports jumbo frames on Gigabit ports – at least 1536B |
|
Performance |
|
|
NAT throughput |
800+ Mbps |
|
Concurrent sessions |
25,000 |
|
IPsec VPN throughput |
75+ Mbps |
|
Configuration |
|
|
Web-based user interface |
Browser-based configuration (HTTP/HTTPS) |
|
Management
|
Web-based user interface, Simple Network Management Protocol (SNMP) v3, Bonjour, PnP Command-line interface via console – limited configuration command support FindIT support for monitoring and management |
|
Event logging |
Local, syslog, email alerts |
|
Network diagnostics |
Ping, traceroute, DNS lookup |
|
Upgradability
|
Firmware upgradable via browser UI, imported/exported file, USB, Cisco FindIT |
|
System time |
Network Time Protocol (NTP), Daylight Savings, manual entry |
|
Language support |
User interface support: English |
|
Environmental |
|
|
Power |
12VDC/2A |
|
Operating temperature |
0 ° to 40 °C (32 ° to 104 °F) |
|
Storage temperature |
-20 ° to 70 °C (-4 ° to 158 °F) |
|
Operating humidity |
10% to 85% noncondensing |
|
Storage humidity |
5% to 90% noncondensing |
|
Certifications
|
Safety: • UL 60950-1 • CAN/CSA-C22.2 No. 60950-1 • IEC 60950-1 • EN 60950-1 Radio approvals: • FCC Part 15.247, 15.407 • RSS-210 (Canada) • EN 300.328, EN 301.893 (Europe) • AS/NZS 4268.2003 (Australia and New Zealand) EMI and susceptibility: • FCC Part 15.107 and 15.109 • ICES-003 (Canada) • EN 301.489-1 and -17 (Europe) - RV260/RV260P rackmount: Class A |
