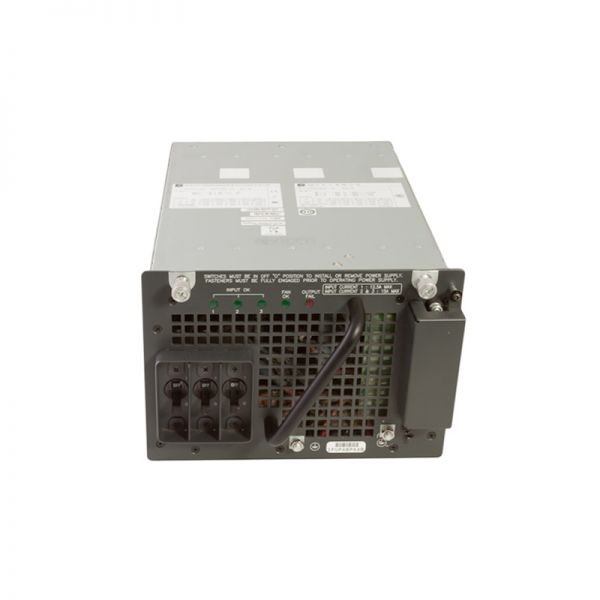

PWR-C45-1400DC Спецификация
PWR-C45-1400DC Specification |
|
|
Minimum Cisco IOS Software release required |
12.1(12c)EW |
|
Minimum Cisco Catalyst Operating System Software required |
12.2(25)EW |
|
Integrated PoE |
No (data only) |
|
IEEE 802.3af compliant |
No |
|
Input voltage |
-48.5 to -72 VDC |
|
Input current (rated) |
Two -48 VDC at 15A One -48 VDC at 12.5A |
|
Output current (data) |
Two -48 VDC at 15A One -48 VDC at 12.5A |
|
Output current (PoE) |
- |
|
Output power redundant mode (data) |
1368W + 40W |
|
Output power redundant mode (PoE) |
- |
|
Output power combined mode (data) |
2473W |
|
Output power combined mode (PoE) |
- |
|
Heat dissipation |
1048 BTU/hr |
|
Holdup time |
8 ms |
|
Power-supply indicators and interfaces |
● Fan OK LED(per input): Green• Input OK LED(per input): Green ● Output Fail LED (per unit): Red ● Support for Simple Network Management Protocol (SNMP) MIB |
|
Environmental conditions |
● Operating temperature: 32 to 104ºF (0 to 40ºC) ● Storage temperature: SNMP 40 to 167ºF (SNMP 40 to 75ºC) ● Relative humidity: 10 to 90 percent, noncondensing ● Operating altitude: SNMP 60 to 3000m |
|
Safety |
● UL 60950 ● CAN/CSA-C22.2 No. 60950 ● EN 60950 ● IEC 60950 ● TS 001 ● AS/NZS 3260 |
|
Electromagnetic compatibility (EMC) |
● FCC Part 15 (CFR 47) Class A ● ICES-003 Class A ● EN55022 Class A ● CISPR22 Class A ● AS/NZS 3548 Class A ● VCCI Class A ● EN 55022 ● EN 55024 ● EN 61000-6-1 ● EN 50082-1 ● EN 61000-3-2 ● EN 61000-3-3 ● ETS 300 386 |
|
Industry EMC, safety, and environmental standards |
● GR-63-Core Network Equipment Building Standards (NEBS) Level 3 ● GR-1089-Core Level 3 ● EN 50121-4 ● ETS 300 019 Storage Class 1.1 ● ETS 300 019 Transportation Class 2.3 (pending) ● ETS 300 019 Stationary Use Class 3.1 ● ETS 300 386 |
|
Warranty |
Cisco Catalyst 4500 Power Supplies are covered for five (5) years by the Cisco Limited Lifetime Hardware Warranty. Note: If you purchased a Cisco Catalyst 4500E Series PoE Line Card or power supply before May 1, 2009, it is covered by the Cisco 90-Day Limited Hardware Warranty. |
|
Service and support |
Cisco offers lifecycle service and support for the Cisco Catalyst 4500 Series, directly and for resale through Cisco distributors. From implementation to operation and optimization, Cisco offers advanced service and technical support. |
|
Advanced service |
Cisco Total Implementation Solutions (TIS) offers a full range of implementation solutions, including project management, project engineering, configuration, and staging and rollout coordination. Cisco TIS helps ensure correct installation and deployment. |
|
Technical support |
Cisco Smart Net Total Care™ online and telephone support augments the customer's operations-staff resources. Support includes the ability to refresh system software at will as well as a range of Advance Replacement hardware options. Cisco Smart Net Total Care Onsite support adds the services of a field engineer, services that can be critical when customer staffing is insufficient or unavailable for parts-replacement activities. |
|
ROHS compliance |
ROHS5 |
|
Rated MTBF (Hours) |
316,454 |
